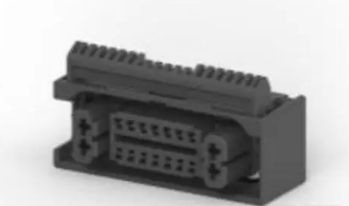

- 1-1670782-1
- Tyco
Product Type Features
- Connector Shape : Rectangular
- Connector System : Wire-to-Wire
- Connector & Housing Type : Housing for Female Terminals
- Sealable : Yes
- Connector & Contact Terminates To : Wire & Cable
- Primary Locking Feature : Integrated in Housing
- Mixed & Hybrid Connector : Yes
Configuration Features
- Number of Positions : 18
- Number of Rows : 2
Electrical Characteristics
- Operating Voltage (VDC): 12
Body Features
- Cable Exit Angle : 180°
- Primary Product Color : Black
- Connector & Keying Code : A
Contact Features
- Contact Type : Receptacle
- Contact Size : 1.2mm, 2.8mm
- Mating Tab Width (mm): 1.2, 2.8
- Mating Tab Width (in): .047, .11
- Contact Current Rating (Max) (A): 7, 29
Mechanical Attachment
- Mating Alignment : With
- Mating Alignment Type : Keyed
- Strain Relief : Without
- Connector Mounting Type : Cable Mount (Free-Hanging)
- Terminal Position Assurance : No
Housing Features
- Housing Material : PBT GF30
- Centerline (Pitch) : 3.5 mm [ .138 in ]
Dimensions
- Row-to-Row Spacing (mm): 5.5, 6.3
- Row-to-Row Spacing (in): .216, .248
- Product Length : 60.3 mm [ 2.37 in ]
- Product Width : 33.3 mm [ 1.31 in ]
- Connector Height : 31 mm [ 1.22 in ]
Operation/Application
- Circuit Application : Power
Industry Standards
- UL Flammability Rating : UL 94HB
- Degree of Protection : IPX9K
Packaging Features
- Packaging Method : Box
- Packaging Quantity : 420
Other
- Connector Position Assurance Capable : No
- Serviceable : No
