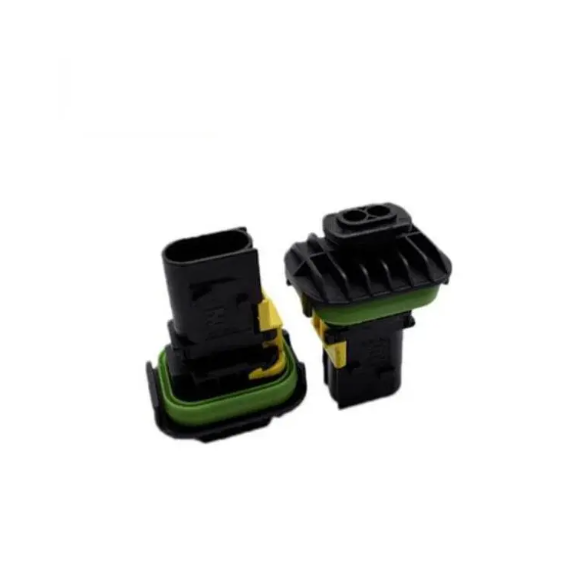

The Heavy Duty Sealed Connector Series Housings are designed to provide robust protection for electrical connections in demanding industrial and commercial environments. Available in sizes ranging from 2 to 18 cavities, these housings offer versatile mounting options and accommodate high-current contacts up to 40 amps. They include a secure slide lock mechanism, an integrated secondary lock for contact alignment, and an IP67/IP69K rating for excellent dust and water resistance. Constructed from durable thermoplastic materials, they support a wide operating temperature range from -40°C to 140°C, making them suited for various applications.
Feature | |
---|---|
Contact Size Compatibility | Accepts contact sizes 6.3/4.8K (up to 40 amps), 2.8 (up to 40 amps), and 1.5K (up to 20 amps) for flexible application in power and signal circuits. |
Cavity Arrangements | Available in 2, 3, 4, 6, 7, 8, 10, 12, 15, 16, and 18 cavity configurations to meet a range of wiring requirements. |
Mounting Options | Supports both in-line and flange mount configurations for ease of installation in various setups. |
Housing Material | Constructed from durable thermoplastic materials, providing resistance to mechanical and environmental stress. |
Slide Lock for Mating | Features a secure slide lock mechanism for stable and reliable connections. |
Integrated Secondary Lock | Enables contact alignment and retention, enhancing connection reliability. |
Temperature Range | Operates effectively within -40°C to 140°C (-40°F to 284°F). |
Protection Rating | Meets IP67 and IP69K standards for protection against dust and water ingress. |
Electrical Specifications | Supports wire sizes from 6.00 to 0.20 mm² and operates effectively in a voltage range up to 60 VDC |
Color and Keying Options | Available in multiple colors and keying codes, facilitating easy identification and assembly. |
Flammability Rating | Meets UL 94V-0 standards for flammability resistance. |
Accessory Compatibility | Compatible with accessories such as backshells, fixing slides, protection caps, blind plugs, and sealing plugs, enhancing versatility and protection. |
Centerline (Pitch) | Provides a range of centerline options from 2.5 mm to 9.5 mm to accommodate different wire sizes. |
Operating Voltage | Suitable for nominal voltage architectures of 12V, 24V, 32V, 42V, and 60V. |
Mating Alignment | Keyed for precise alignment during mating. |
Strain Relief | Options available for added strain relief or without for flexible installations. |
Connector Position Assurance | Some configurations support Connector Position Assurance (CPA) for added security during connection. |
CAN Bus Compliance | Meets CAN (Controller Area Network) Bus protocol specifications according to SAE (Society of Automotive Engineers) J1939 standard, supporting modern vehicle communication systems. |
Q: When should I use the Heavy Duty Sealed Connector Series?
A: Heavy Duty Sealed Connector Series provides reliability and performance on the engine or transmission, under the hood, for motor controllers, solenoid interfaces, on the chassis, or in the cab. It offers field-proven reliability and rugged quality. Rectangular, thermoplastic housings offer a wide operating temperature range, and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme temperature and moisture. The connectors feature an integrated slide lock for mating and an integrated secondary locking device for contact alignment and retention.
Q: Whatis the vibration rating for the Heavy Duty Sealed Connector Series?
A: No physical damage of housings and contacts, no derogation of function; the connection may not open at 177 m/s2, 94 hours for each of the three axes. See product specification 108-94020 for full specifications.
Q: What is the flammability rating for the Heavy Duty Sealed Connector Series?
A: Product with a UL 94 V0 rated material is available.
