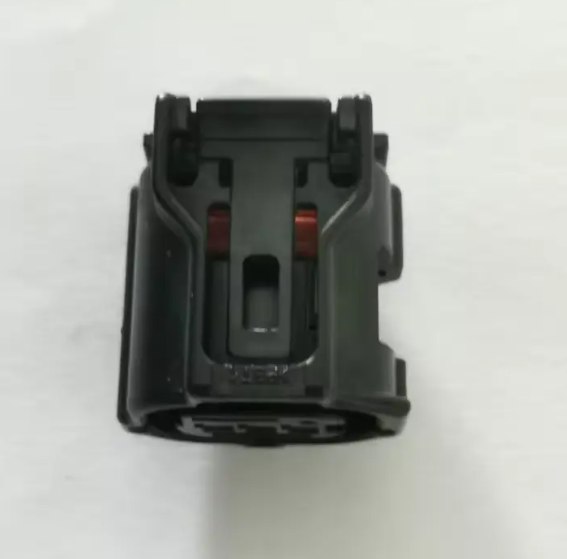

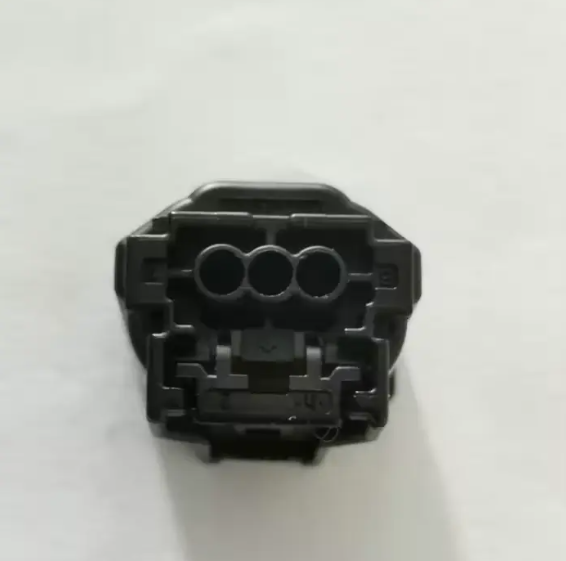

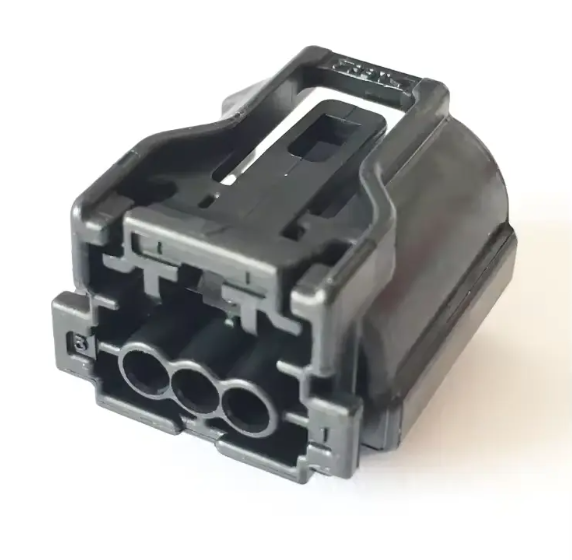

Waterproof Automotive Car Sumitomo connectors

Part number                           6189-1129

Brand                              Sumitomo

Minimum packing quantity                     100

The packing quantity of the whole box                     1000.0

Minimum packing weight                      0.35

The weight of the whole container                       4.1

Product name                         Plastic shell

batch                    N

Unit                        PCS

Origin                      Japan

Series                       TS Waterproof

Matched parts                6188-4920(TS waterproof series)

The minimum insulation resistance                100MΩ

The maximum contact resistance                  8mΩ at the beginning and 16mΩ at the end

Male/Female                 F

Pole number                    3

The maximum leakage current                  50μA

Material                       PBT

Initial sealing                     50kPa minimum durability 30kPa minimum

Non-waterproof, waterproof and waterproof

Color                        black
