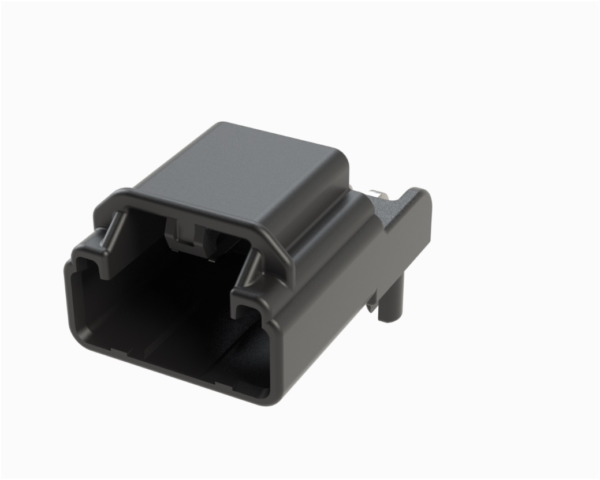

| Yazaki Part Number | 7225-4359-20 |
|---|
Specifications
| Classified Parts | CONNECTOR | ||||
|---|---|---|---|---|---|
| Family | YMT 1.2 | ||||
| Replacement part number | Mating Part Numbers | 7289-7836-20 | |||
| Connection Type | Device Connector | Unsealed/Seald | Unsealed | ||
| Male/Female | Male | Number of Poles | 4 | ||
| Tab size (mm) |
|
Materials | PPA | ||
| Size (mm) (Outer shape of parts) |
Length | 28.30 | Plating | ||
| Width | 19.40 | Color | VIOLET | ||
| Height | 18.20 | Hybrid | NO | ||
| Clip installation structure | NO | Application bolt | |||
| Compatible hole size (mm) |
Min | Compatible plate thickness (mm) |
Min | ||
| Max | Max | ||||
| Electric current classification | |||||
| Product standard No. | YPES-11-05-401 | ||||
| Handling manual No. | YPES-15-1813 | |
|---|---|---|
| Temperature Range | -40 to 100℃ | ||
|---|---|---|---|
